Small test plates
Check the shutter and new joints before committing to the main parts.
PRINTED FRAME + BODY · PF1 CANDIDATE
20 planned runs.
One reusable build plate.
The current Creator 5 Pro plan uses the same build plate each time: remove the finished pieces, check them, then prepare the next approved run. You do not need twenty physical printer sheets.
Printed-frame plates
19 pieces form the new stationary frame candidate.
Body plates
37 preserved shell and camera/audio pieces, with the tall posts on their own plate.
Twenty is the original conservative from-scratch plan, not the number of prints remaining and not a guaranteed final or minimum count. It reserves 8 mm of brim space around every object, a 5 mm outer margin and 2 mm between reserved envelopes on a nominal 256 × 256 mm bed. Actual slicing, changed hardware or reprints may add or rearrange runs. Final kit clamps, cable fittings and mobility mounts are not yet included.
Here is the first printed-frame candidate

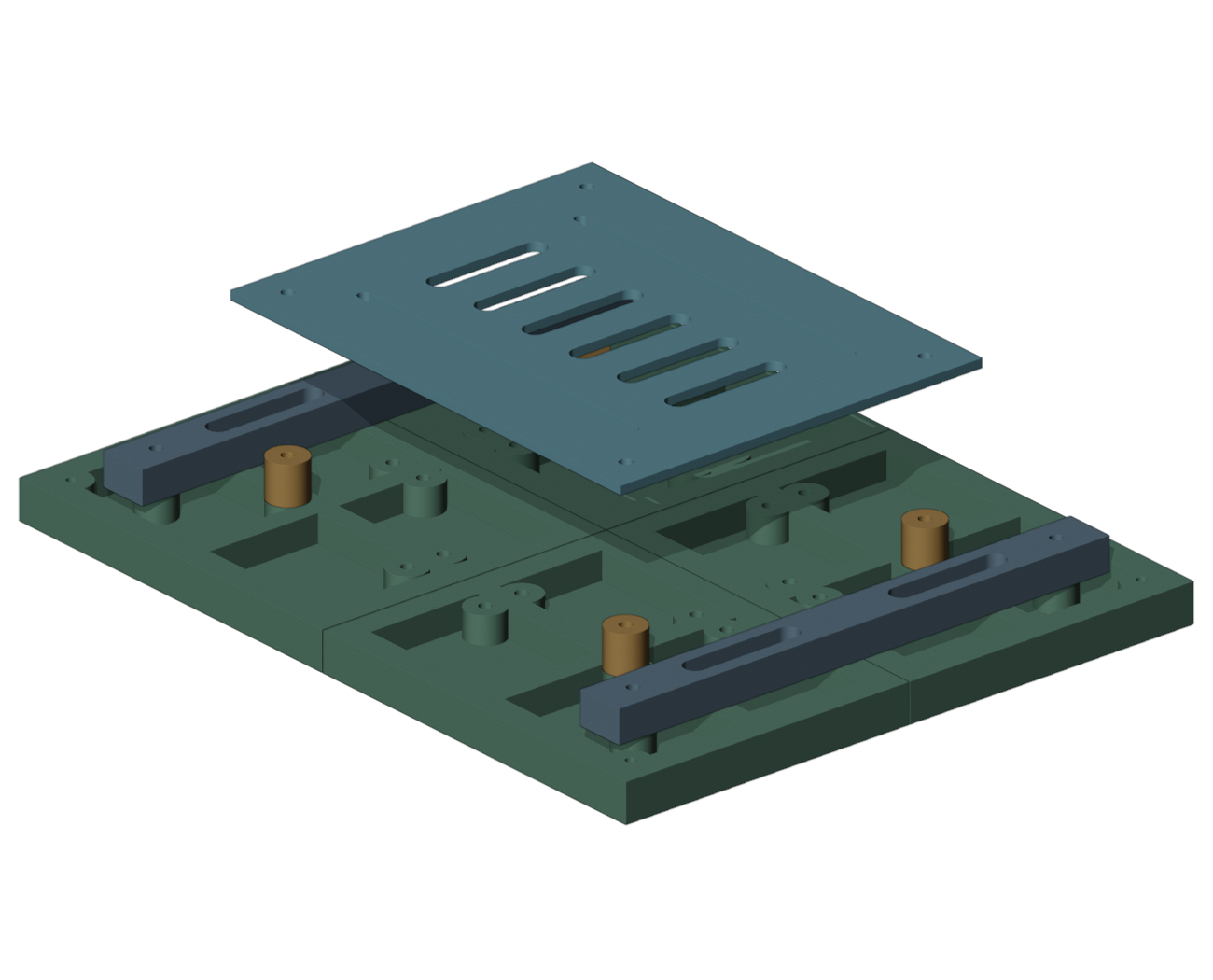

The new frame has four ribbed base quarters, four overlapping underside joint braces, two crossmembers, one slotted tray, four risers and four feet. That is 19 new printed pieces; together with the body it is 56 main candidate pieces. Electronics, real fasteners and later drive hardware are purchased components.
The tray’s default 180 × 140 mm envelope is adjustable source geometry, not a measurement of your CanaKit. Do not install a loose powered kit. The frame has no released payload rating, case clamps, cable entry, motor/caster/battery mounts or completed physical test. See every new frame part · Detailed candidate assembly and qualification notes
Use the plan in this order
- First, reconcile anything already printed. Match the actual parts, material, revision and fit result before skipping a test. A printer returning to Idle is not proof of usable parts; never send a duplicate on that assumption.
- Run 01 is the separate PLA shutter trial. Run 02 tests the proposed PETG joint and interfaces. This plan does not reuse an old tool assignment or authorize a new send.
- Stop and inspect. Record physical completion separately from fit acceptance. A passing PLA mechanism does not qualify PETG structure, and a short corner sample does not prove a tall post.
- Only after measurements and fit gates, review runs 03–07 for the frame and 08–20 for the body. Keep every model at 100% millimetre scale. Inspect supports, brim, every layer and actual tool/material mapping in the correct slicer.
All public statuses below are planning labels. Actual attempts, photos and fit results are kept in the private project print register. The download here is a blank template and contains no personal printer details.
Every plate, in order

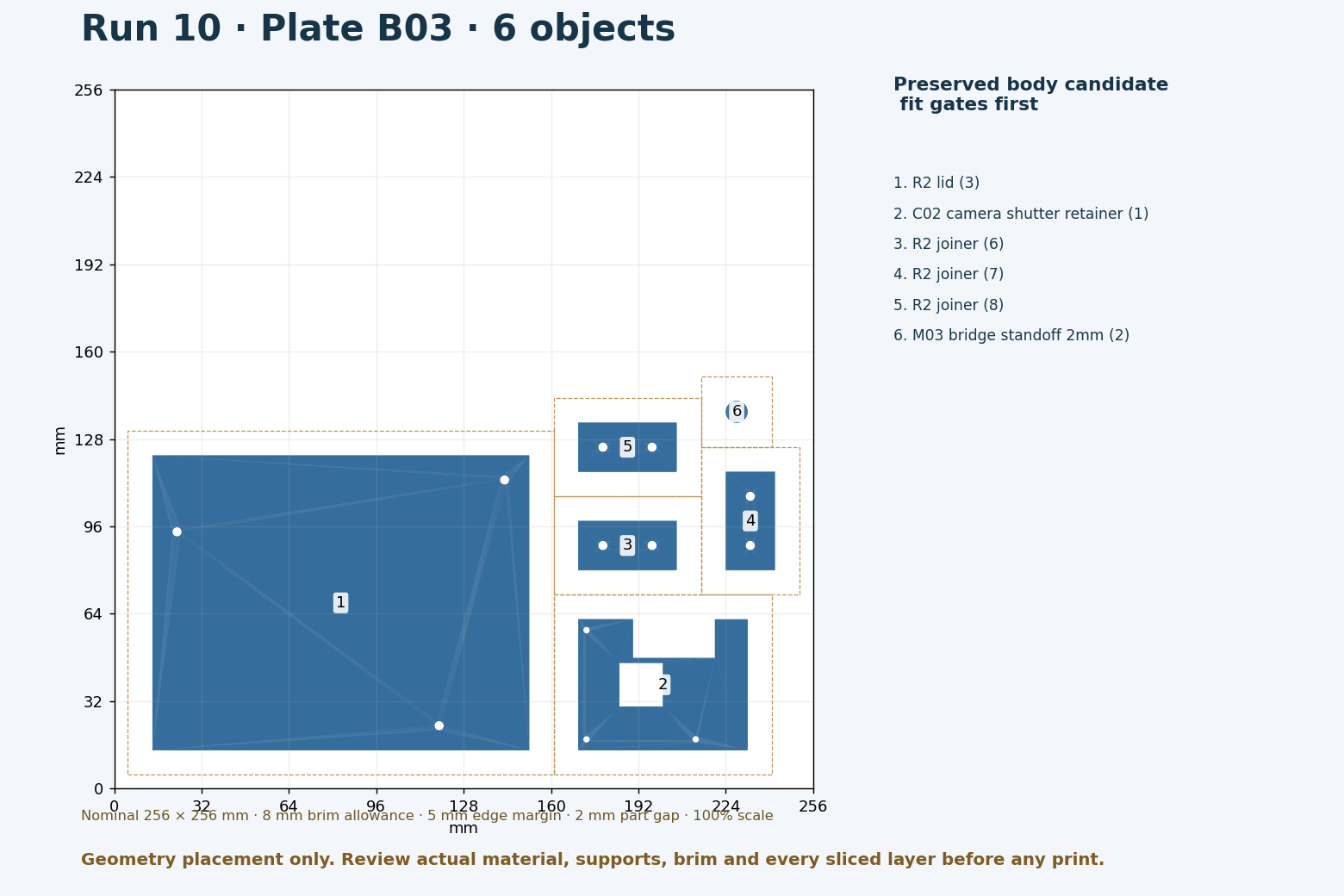

Click a picture to open it full-size. The dashed boxes reserve brim and separation space; they are not sliced toolpaths. Part IDs name the pieces; plate IDs name each collection on the bed.

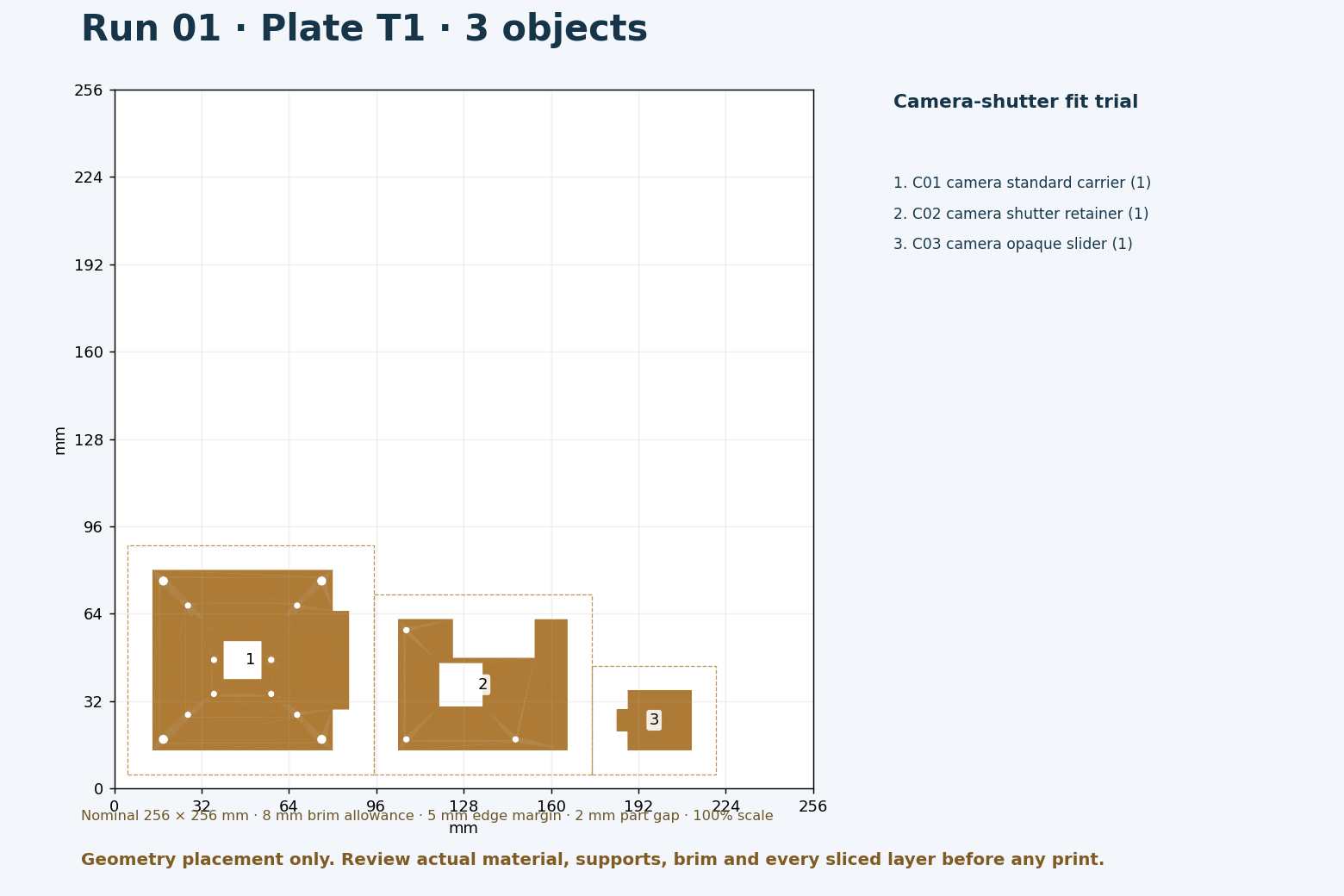

Plate T1 · 3 pieces
Camera-shutter fit trial
Material: PLA; exact prepared machine profile remains separate · Planning status: HOLD
Parts and quantities on this plate
- C01_camera_standard_carrier ×1
- C02_camera_shutter_retainer ×1
- C03_camera_opaque_slider ×1
Download run 01 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

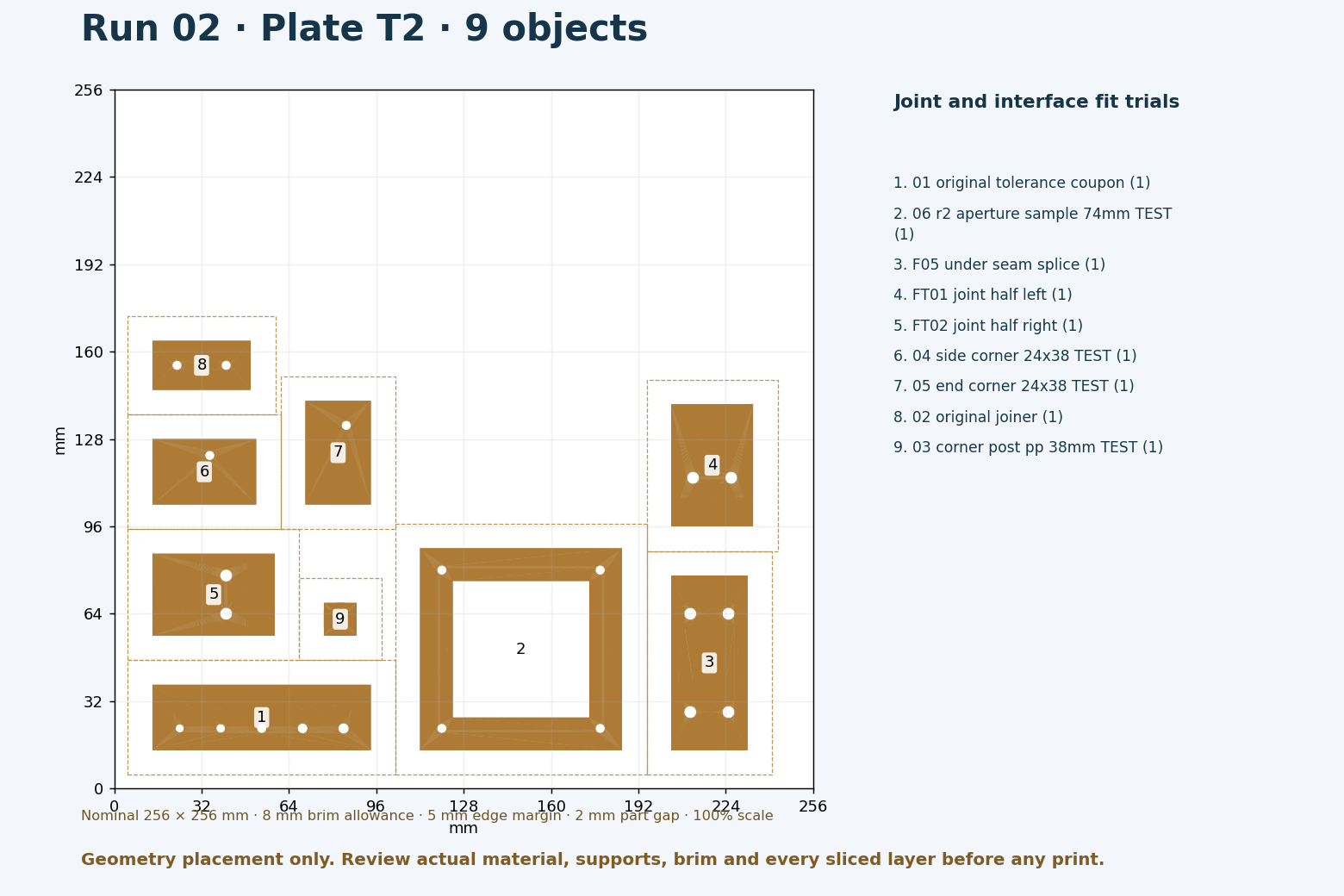

Plate T2 · 9 pieces
Joint and interface fit trials
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- 01_original_tolerance_coupon ×1
- 06_r2_aperture_sample_74mm_TEST ×1
- F05_under_seam_splice ×1
- FT01_joint_half_left ×1
- FT02_joint_half_right ×1
- 04_side_corner_24x38_TEST ×1
- 05_end_corner_24x38_TEST ×1
- 02_original_joiner ×1
- 03_corner_post_pp_38mm_TEST ×1
Download run 02 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

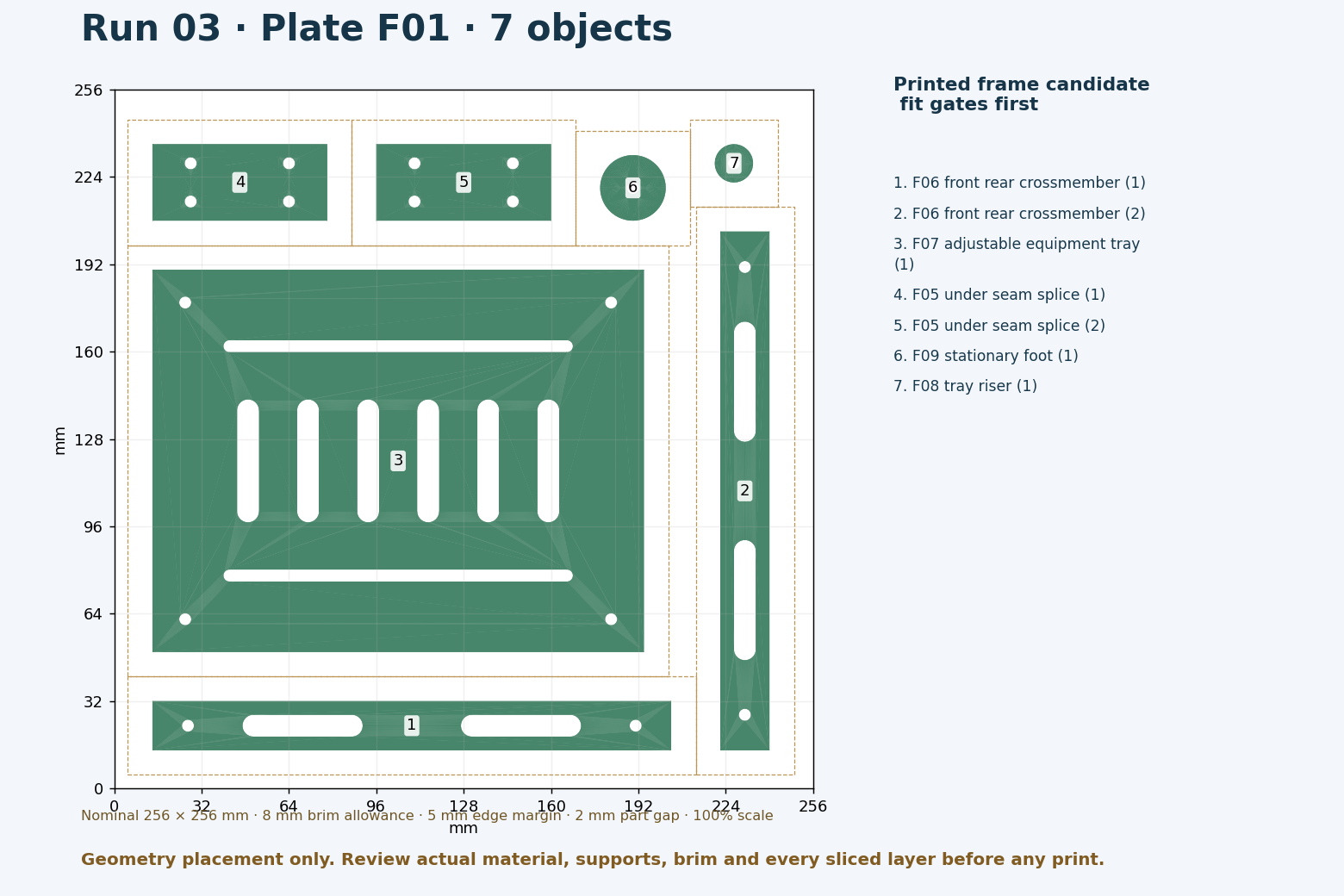

Plate F01 · 7 pieces
Printed frame candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- F06_front_rear_crossmember ×2
- F07_adjustable_equipment_tray ×1
- F05_under_seam_splice ×2
- F09_stationary_foot ×1
- F08_tray_riser ×1
Download run 03 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

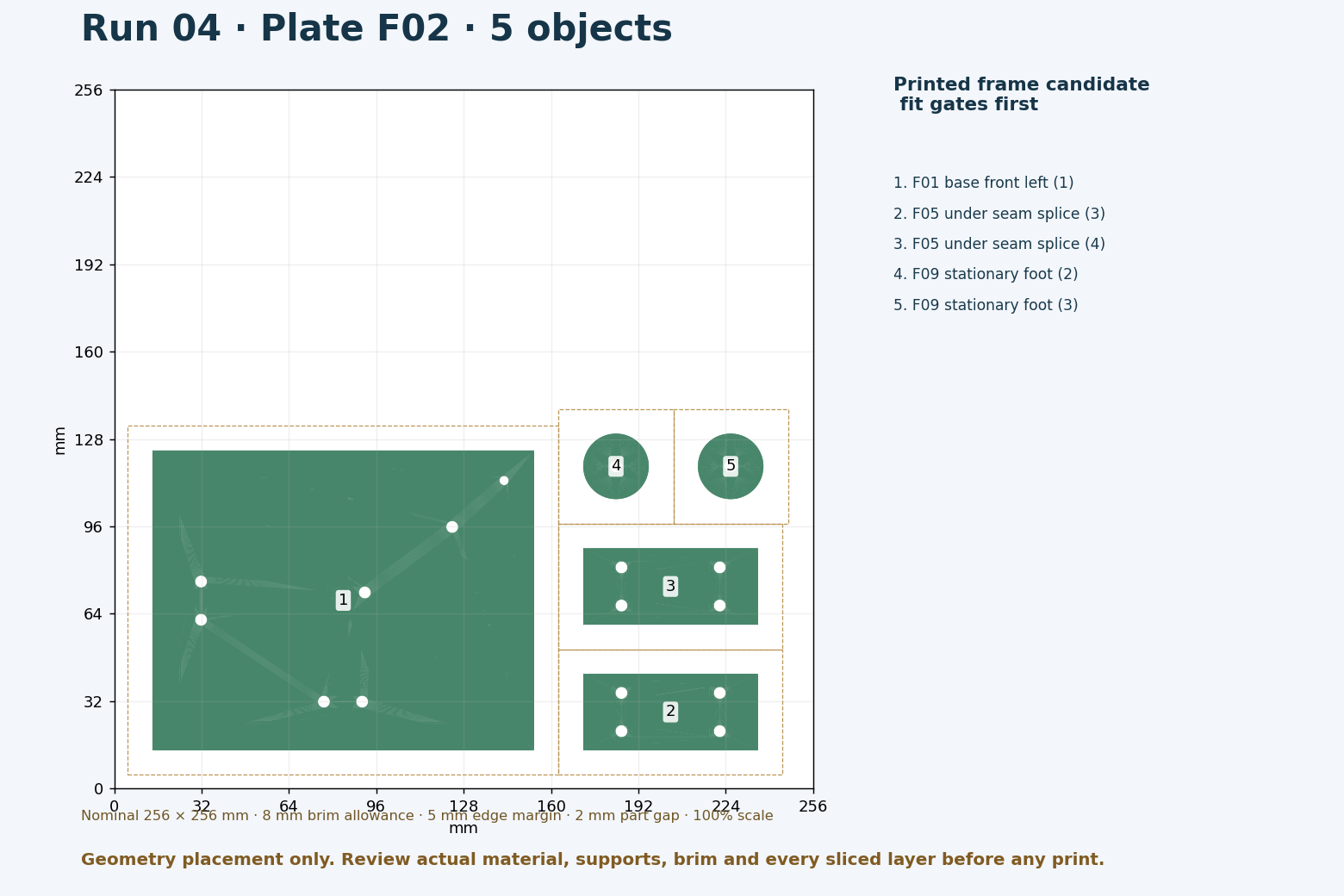

Plate F02 · 5 pieces
Printed frame candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- F01_base_front_left ×1
- F05_under_seam_splice ×2
- F09_stationary_foot ×2
Download run 04 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

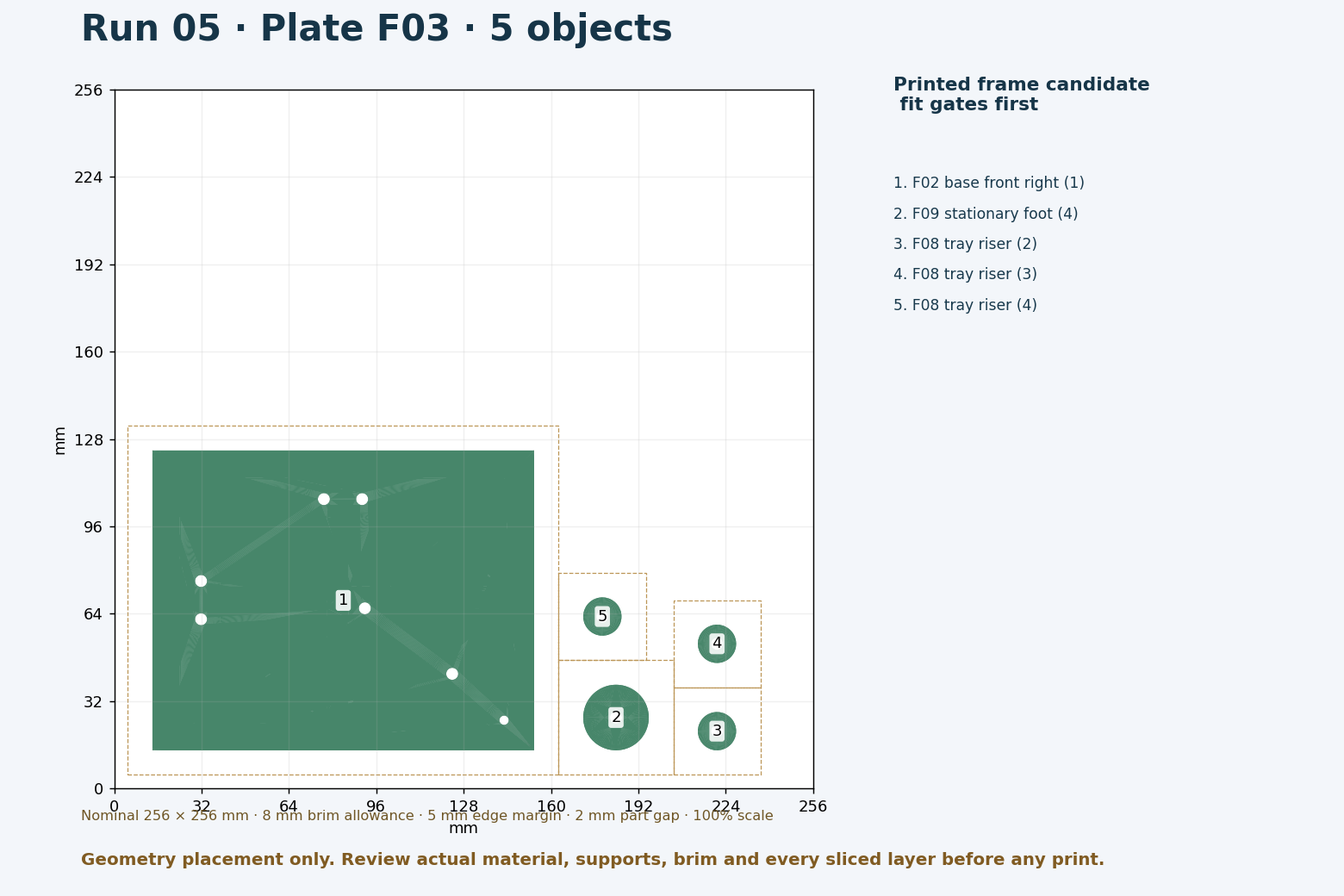

Plate F03 · 5 pieces
Printed frame candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- F02_base_front_right ×1
- F09_stationary_foot ×1
- F08_tray_riser ×3
Download run 05 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

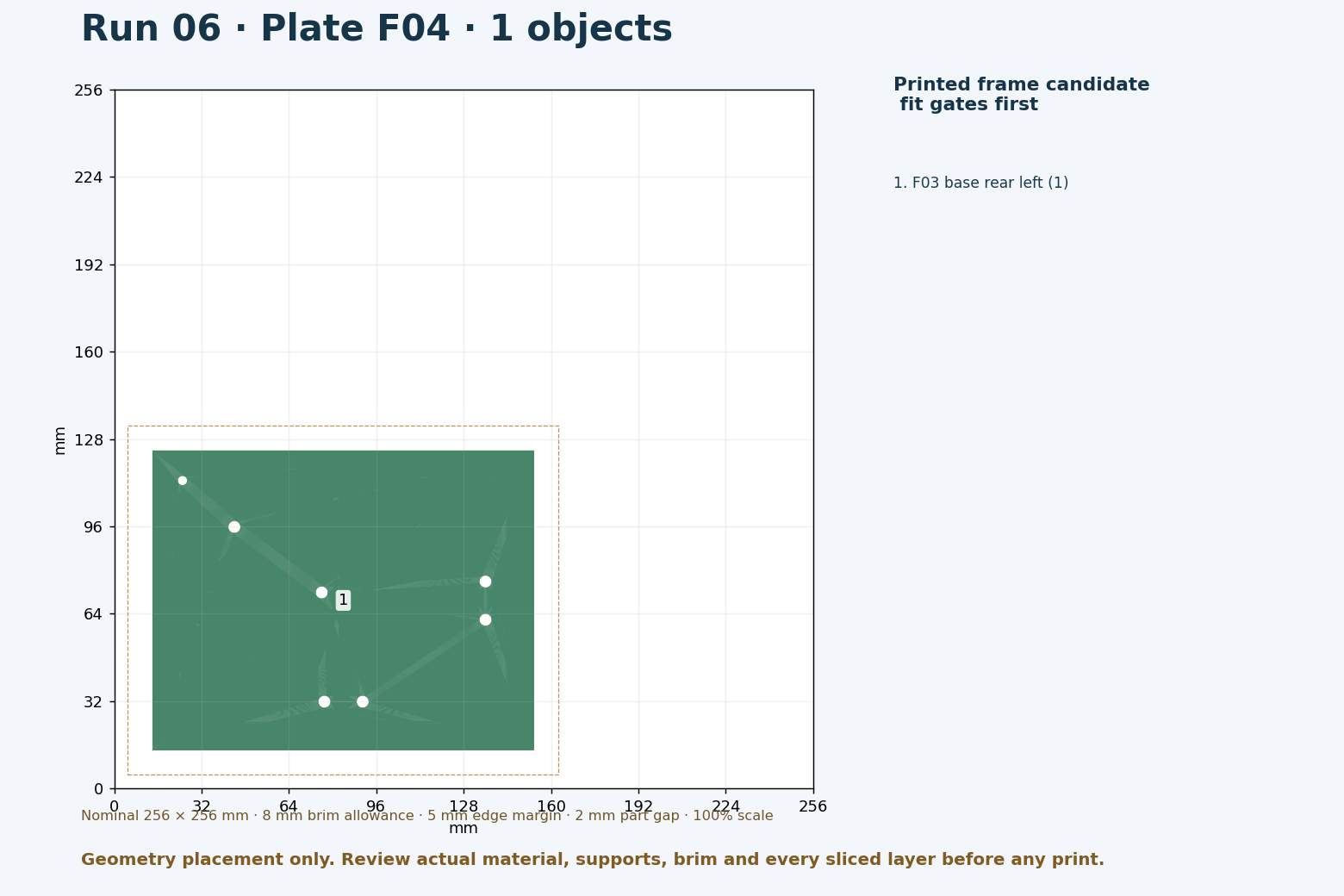

Plate F04 · 1 pieces
Printed frame candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- F03_base_rear_left ×1
Download run 06 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

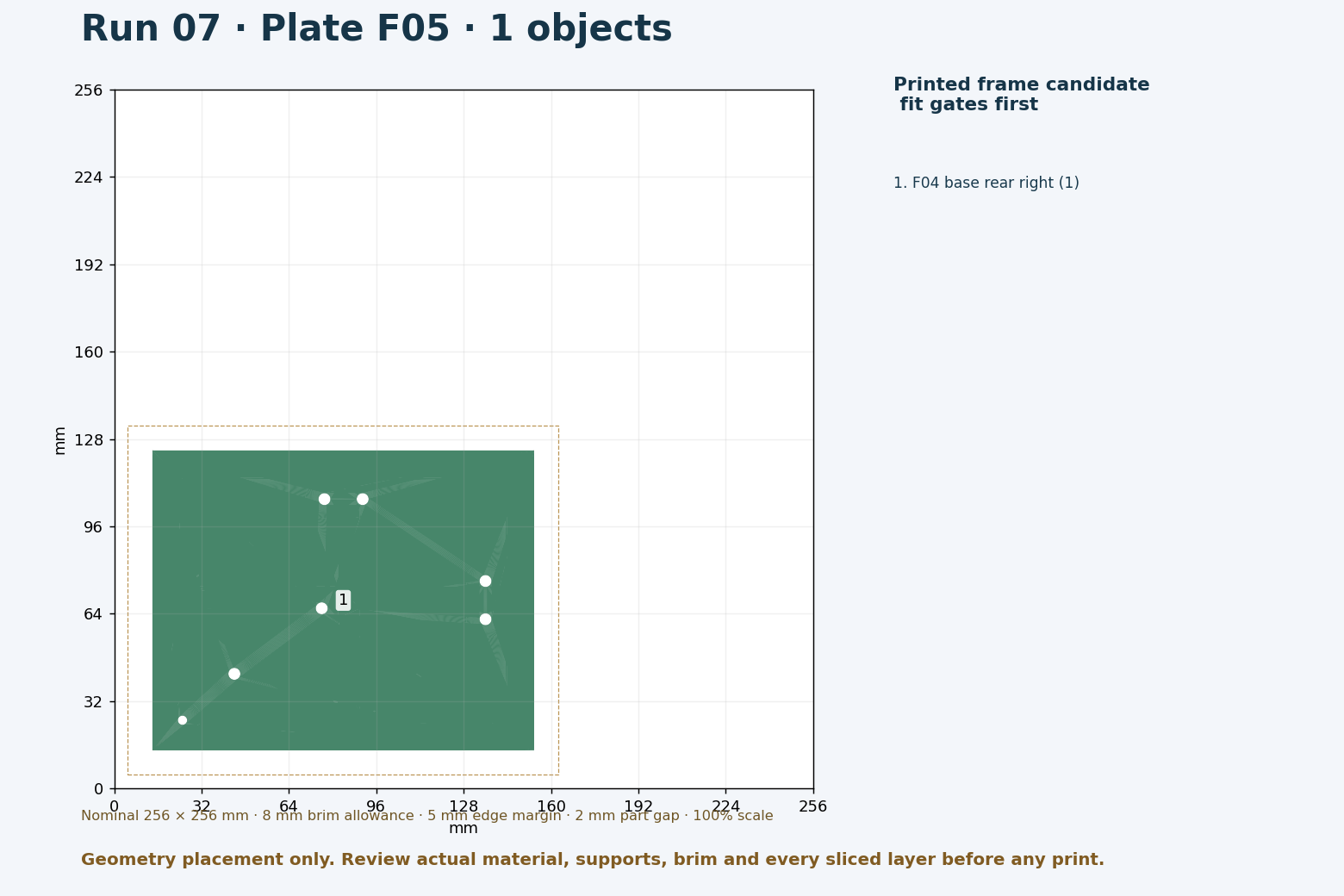

Plate F05 · 1 pieces
Printed frame candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- F04_base_rear_right ×1
Download run 07 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

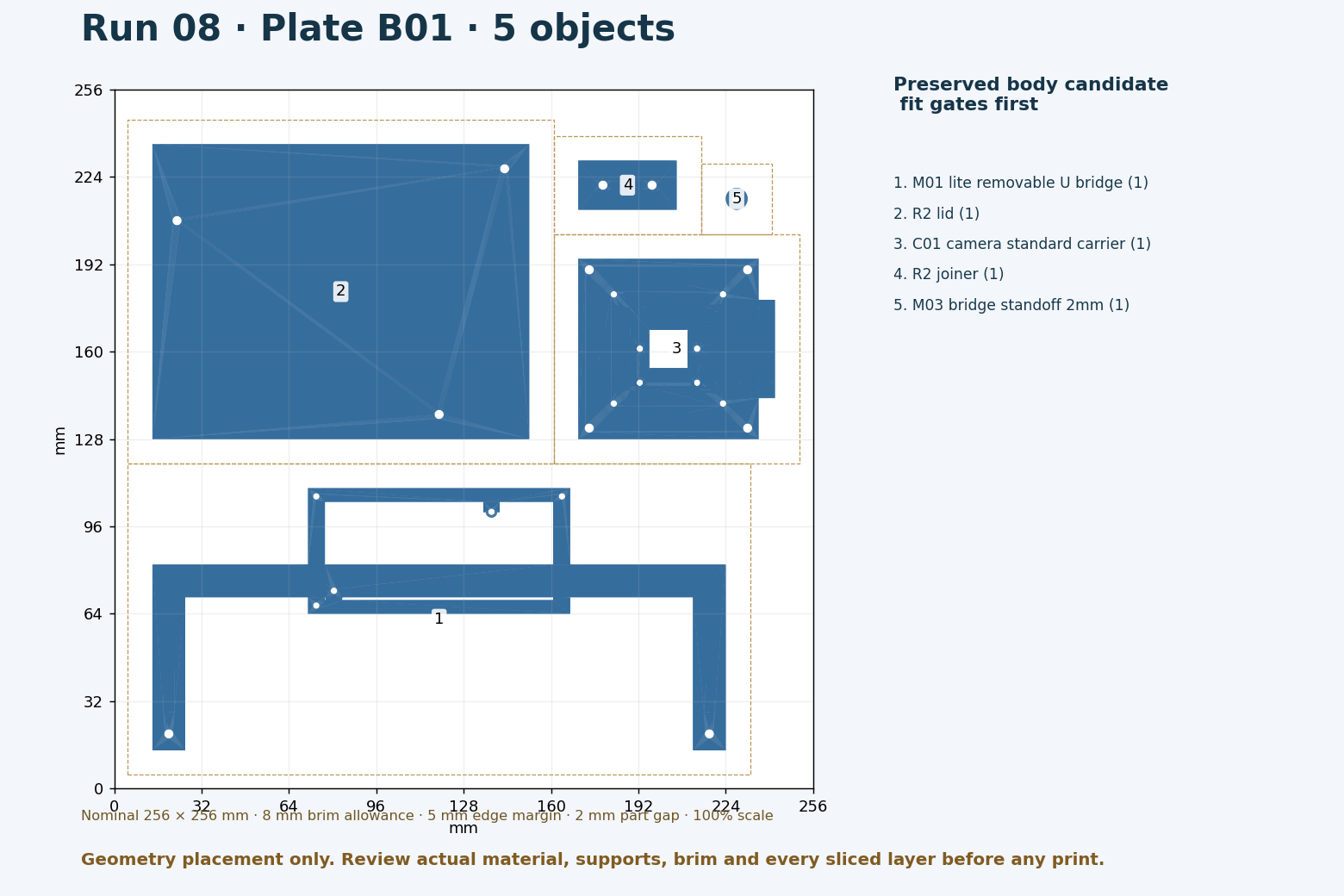

Plate B01 · 5 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- M01_lite_removable_U_bridge ×1
- R2_lid ×1
- C01_camera_standard_carrier ×1
- R2_joiner ×1
- M03_bridge_standoff_2mm ×1
Download run 08 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

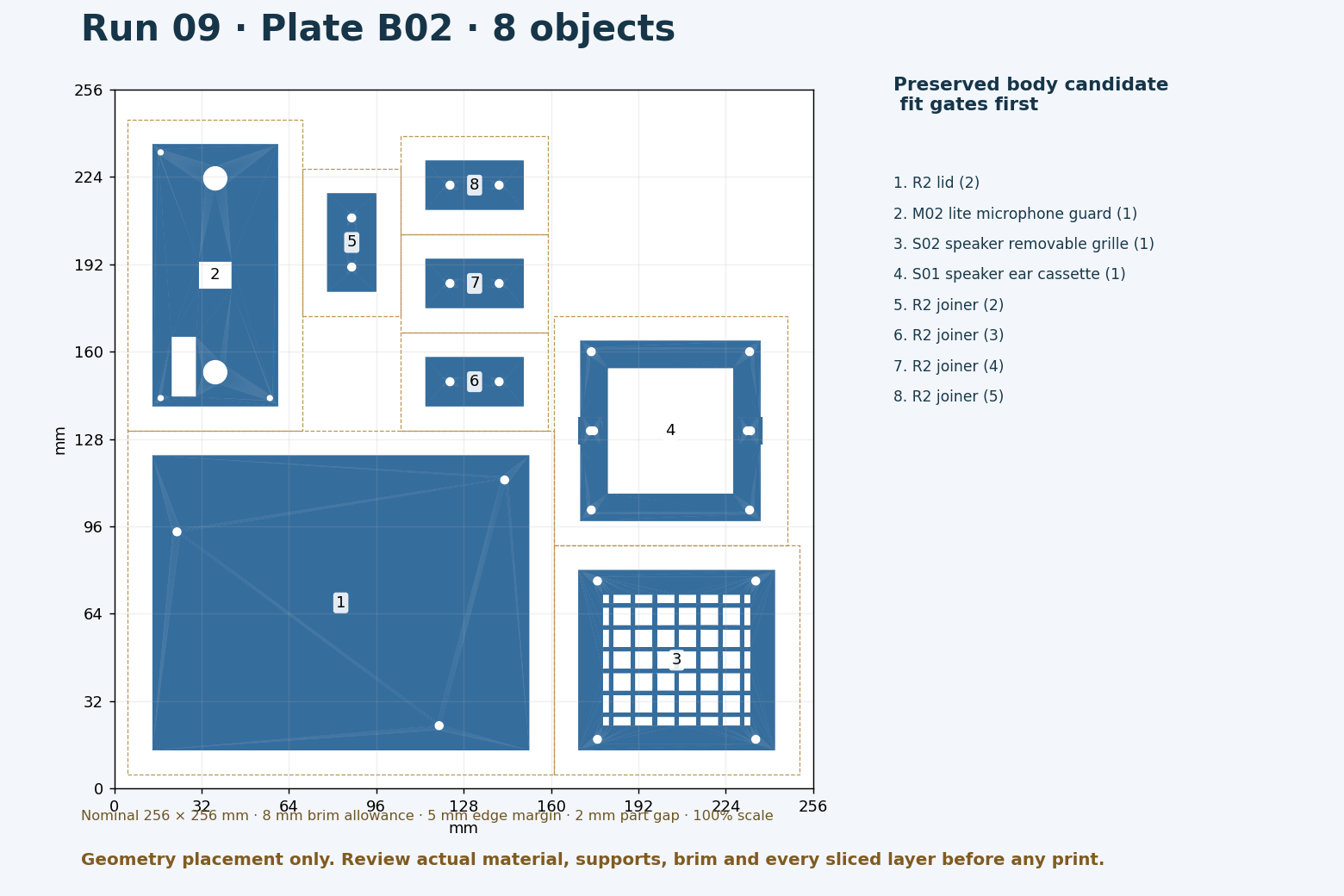

Plate B02 · 8 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_lid ×1
- M02_lite_microphone_guard ×1
- S02_speaker_removable_grille ×1
- S01_speaker_ear_cassette ×1
- R2_joiner ×4
Download run 09 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.
Plate B03 · 6 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_lid ×1
- C02_camera_shutter_retainer ×1
- R2_joiner ×3
- M03_bridge_standoff_2mm ×1
Download run 10 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

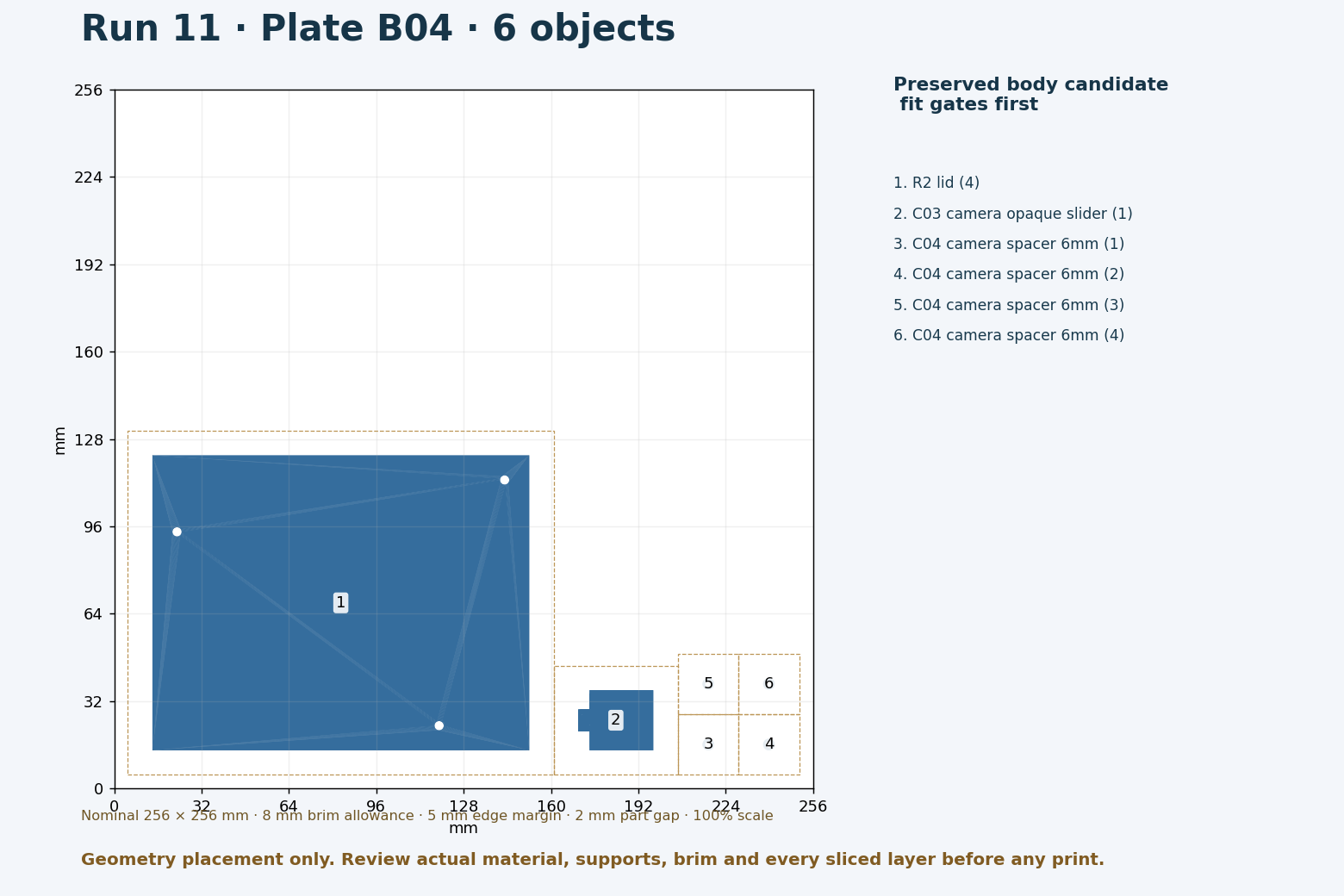

Plate B04 · 6 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_lid ×1
- C03_camera_opaque_slider ×1
- C04_camera_spacer_6mm ×4
Download run 11 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.
Plate B05 · 1 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_side ×1
Download run 12 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

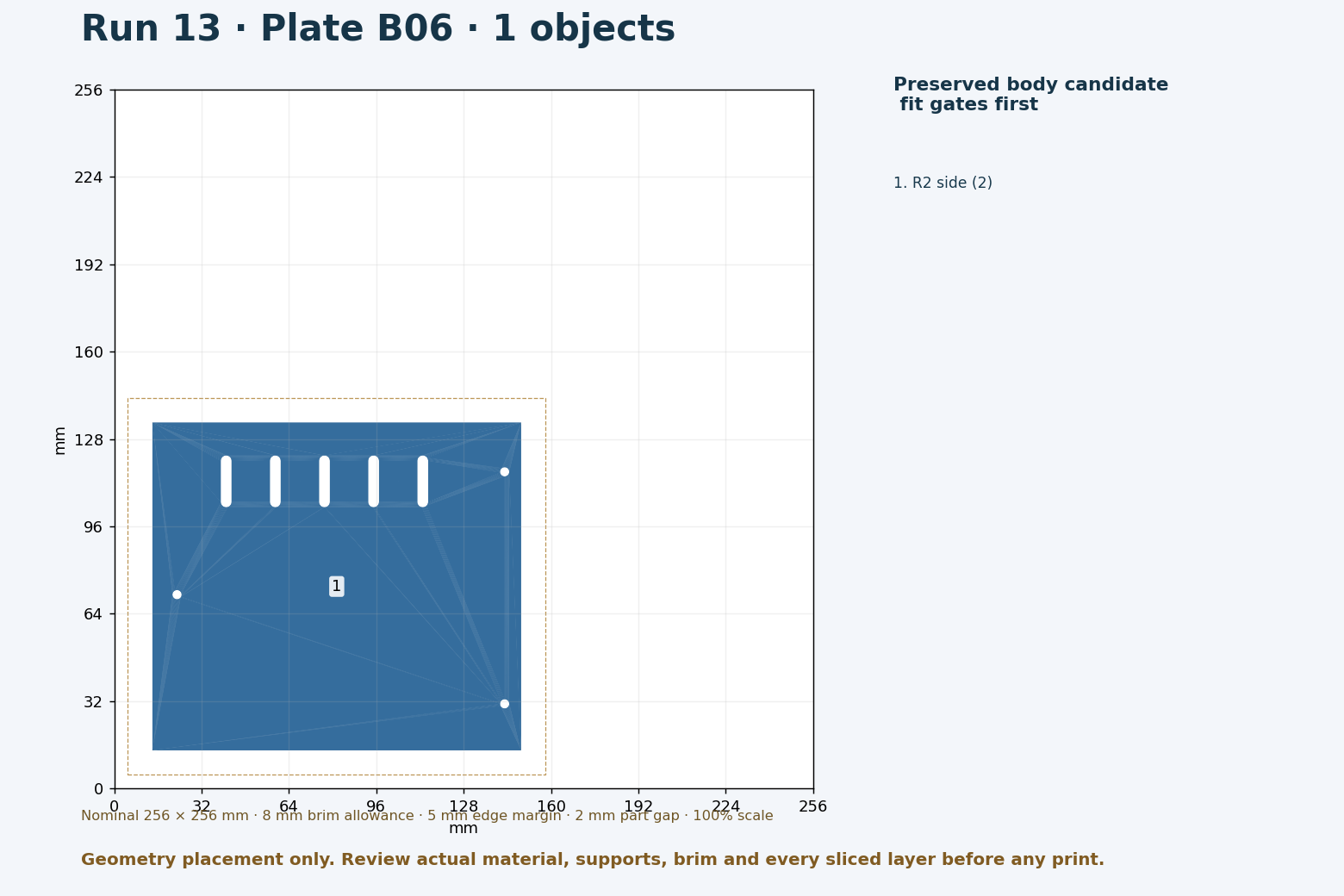

Plate B06 · 1 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_side ×1
Download run 13 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.
Plate B07 · 1 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_side ×1
Download run 14 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.
Plate B08 · 1 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_side ×1
Download run 15 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.
Plate B09 · 1 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_end ×1
Download run 16 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

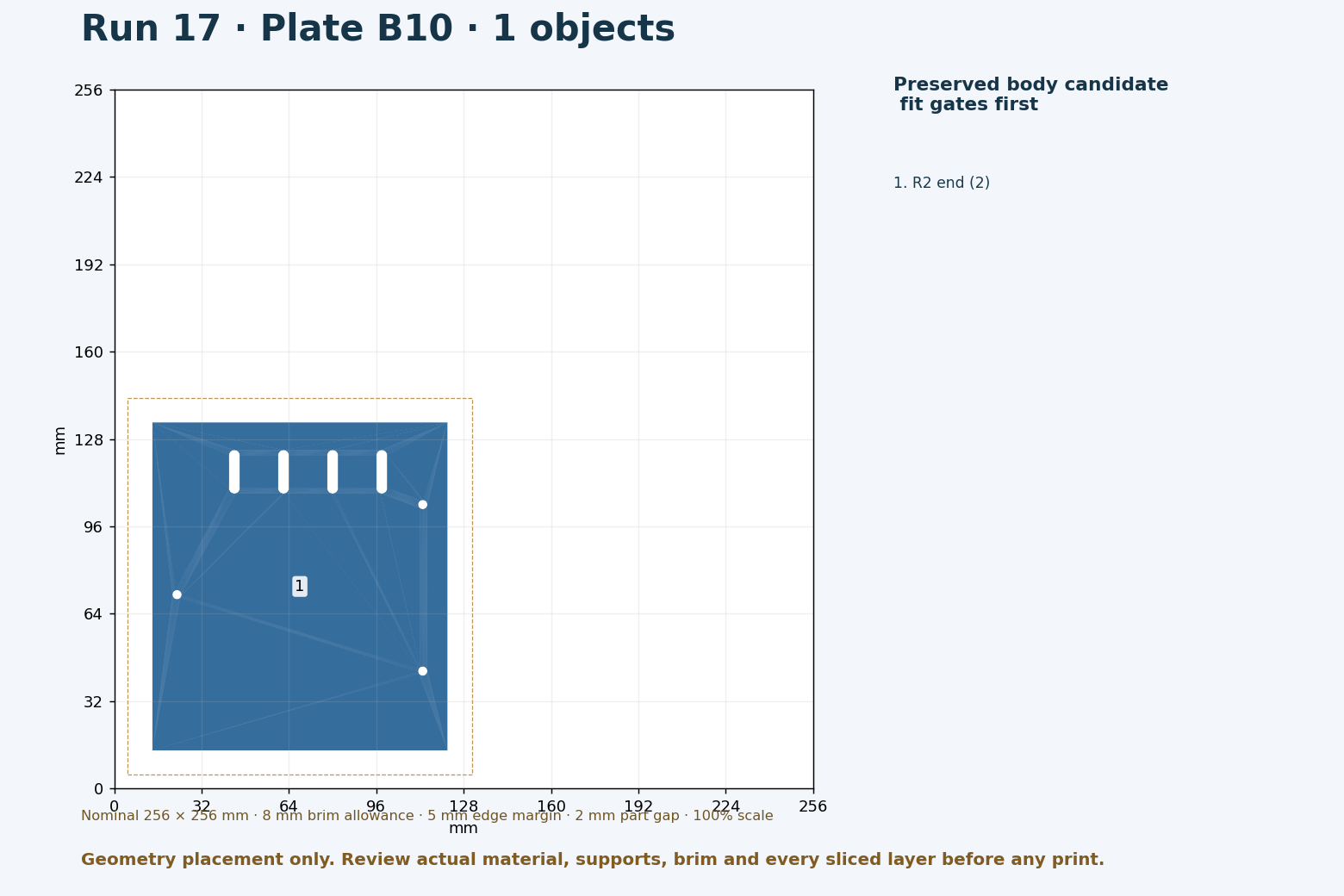

Plate B10 · 1 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_end ×1
Download run 17 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

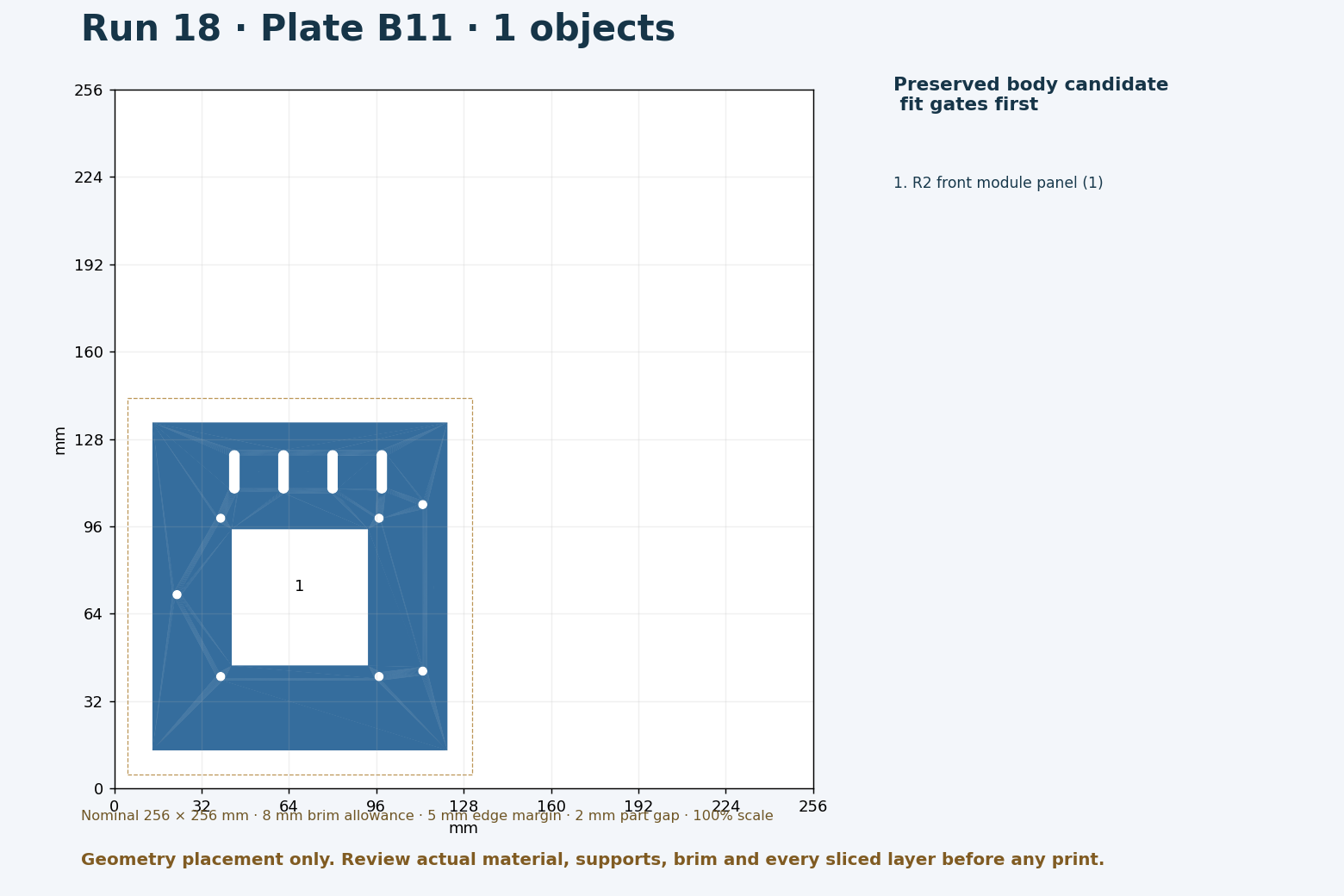

Plate B11 · 1 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_front_module_panel ×1
Download run 18 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.
Plate B12 · 1 pieces
Preserved body candidate; fit gates first
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_front_module_panel ×1
Download run 19 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.

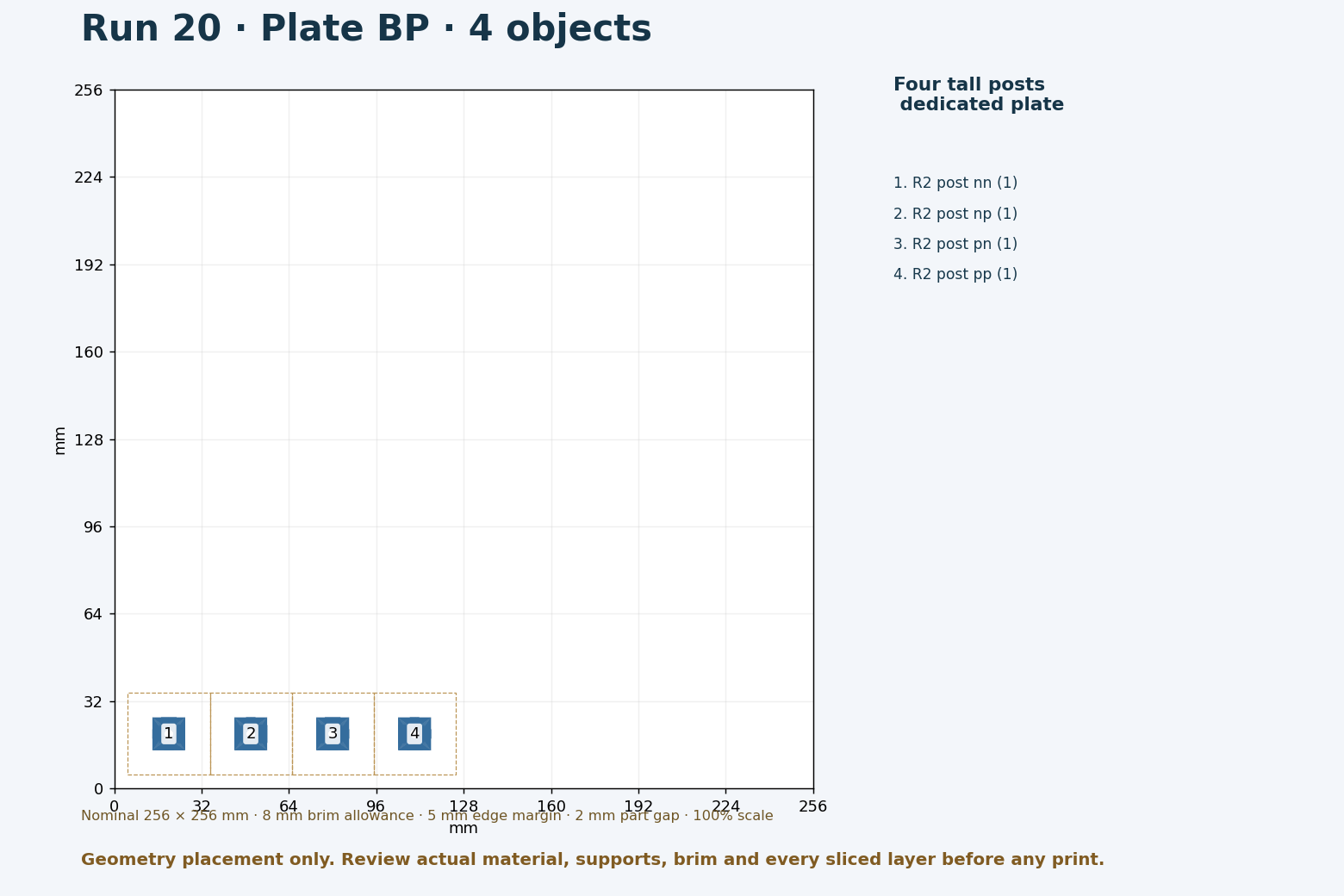

Plate BP · 4 pieces
Four tall posts; dedicated plate
Material: PETG candidate; exact reel/profile unconfirmed · Planning status: HOLD
Parts and quantities on this plate
- R2_post_nn ×1
- R2_post_np ×1
- R2_post_pn ×1
- R2_post_pp ×1
Download run 20 geometry-only 3MF
Time / filament: NOT SLICED. This file has no approved printer profile, tool assignment or G-code.
What has actually been checked?
All 11 new STL types passed the scoped mesh checks. The 19 frame solids were checked for positive-volume intersections, and no frame/body bounding-box intersections were found after the recorded shell offset. All 20 3MFs reopened in strict lib3mf mode with the expected object counts and no warnings. Their reserved plate rectangles fit the nominal bed without overlap. The native assembly reopens with 56 separate printed meshes.
These are digital geometry checks. They exclude the real case, fastener stacks, cables, print process, strength, creep, cooling and acoustics. No physical print or fit result follows from them.
Every part and its purpose · Design review and remaining improvements
